ТВЕРДЫЕ СПЛАВЫ: ПЛАСТИНЫ НАПАИВАЕМЫЕ ДЛЯ РЕЗЦОВ
для проходных прямых, расточных и револьверных резцов

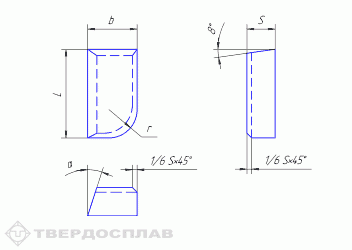

левая |

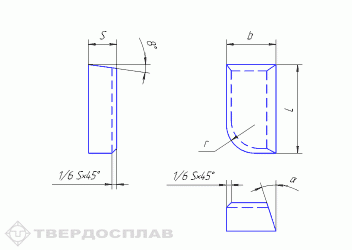

правая |
Правых | Левых | L | b | s | r | α, град |
---|---|---|---|---|---|---|
10411 | 5 | 3 | 2,0 | 2,0 | ||
10431 | 6 | 4 | 2,5 | 2,5 | ||
10451 | 8 | 5 | 3,3 | 3,0 | ||
10051 | 10061 | 10 | 6 | 3,5 | 4,0 | 18 |
70051 | 70061 | 10 | 6 | 3,5 | 4,0 | 8 |
10271 | 12 | 8 | 3,0 | 5,0 | ||
10471 | 10481 | 12 | 8 | 5,0 | 5,0 | 18 |
70471 | 70481 | 12 | 8 | 5,0 | 5,0 | 8 |
10291 | 10301 | 16 | 10 | 4,0 | 6,0 | 18 |
70291 | 70301 | 16 | 10 | 4,0 | 6,0 | 8 |
10491 | 10501 | 16 | 10 | 6,0 | 6,0 | 18 |
70491 | 70501 | 16 | 10 | 6,0 | 6,0 | 8 |
70311 | 70321 | 18 | 12 | 4,5 | 7,0 | 8 |
10151 | 10161 | 20 | 12 | 7,0 | 7,0 | 18 |
70151 | 70161 | 20 | 12 | 7,0 | 7,0 | 8 |
70511 | 70521 | 25 | 14 | 5,5 | 8,0 | 8 |
10531 | 10541 | 25 | 14 | 8,0 | 8,0 | 18 |
70531 | 70541 | 25 | 14 | 8,0 | 8,0 | 8 |
70551 | 70651 | 32 | 16 | 6,0 | 10,0 | 8 |
10571 | 10581 | 32 | 18 | 10,0 | 10,0 | 18 |
70571 | 70581 | 32 | 18 | 10,0 | 10,0 | 8 |
70591 | 70601 | 40 | 18 | 8,0 | 10,0 | 8 |
10611 | 10621 | 40 | 22 | 12,0 | 12,0 | 18 |
70611 | 70621 | 40 | 22 | 12,0 | 12,0 | 8 |
70371 | 70381 | 50 | 20 | 8,0 | 12,5 | 8 |
10631 | 10641 | 50 | 25 | 14,0 | 14,0 | 18 |
70631 | 70641 | 50 | 25 | 14,0 | 14,0 | 8 |
