ТВЕРДЫЕ СПЛАВЫ: ПЛАСТИНЫ СМЕННЫЕ ДЛЯ ТОКАРНОЙ ОБРАБОТКИ
Для токарных проходных, подрезных и расточных резцов

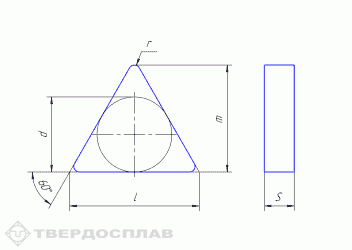

цифровое | буквенно-цифровое | L | d | s | r | m |
---|---|---|---|---|---|---|
01111-110304 | TNUN-110304 | 11.0 | 6.350 | 3.18 | 0.4 | 9.128 |
01111-110308 | TNUN-110308 | 11.0 | 6.350 | 3.18 | 0.8 | 8.731 |
01111-160304 | TNUN-160304 | 16.5 | 9.525 | 3.18 | 0.4 | 13.891 |
01111-160308 | TNUN-160308 | 16.5 | 9.525 | 3.18 | 0.8 | 13.494 |
01111-160312 | TNUN-160312 | 16.5 | 9.525 | 3.18 | 1.2 | 13.097 |
01111-160404 | TNUN-160404 | 16.5 | 9.525 | 4.76 | 0.4 | 13.891 |
01111-160408 | TNUN-160408 | 16.5 | 9.525 | 4.76 | 0.8 | 13.494 |
01111-160412 | TNUN-160412 | 16.5 | 9.525 | 4.76 | 1.2 | 13.097 |
01111-160416 | TNUN-160416 | 16.5 | 9.525 | 4.76 | 1.6 | 12.700 |
01111-220404 | TNUN-220404 | 22.0 | 12.700 | 4.76 | 0.4 | 18.653 |
01111-220408 | TNUN-220408 | 22.0 | 12.700 | 4.76 | 0.8 | 18.256 |
01111-220412 | TNUN-220412 | 22.0 | 12.700 | 4.76 | 1.2 | 17.859 |
01111-220416 | TNUN-220416 | 22.0 | 12.700 | 4.76 | 1.6 | 17.463 |
01111-220424 | TNUN-220424 | 22.0 | 12.700 | 4.76 | 2.4 | 16.550 |
01111-270612 | TNUN-270612 | 27.5 | 15.875 | 6.35 | 1.2 | 22.622 |
01111-270616 | TNUN-270616 | 27.5 | 15.875 | 6.35 | 1.6 | 22.225 |
01131-160304 | TNGN-160304 | 16.5 | 9.525 | 3.18 | 0.4 | 13.891 |
01131-160308 | TNGN-160308 | 16.5 | 9.525 | 3.18 | 0.8 | 13.494 |
01131-160312 | TNGN-160312 | 16.5 | 9.525 | 3.18 | 1.2 | 13.097 |
01131-160408 | TNGN-160408 | 16.5 | 9.525 | 4.76 | 0.8 | 13.494 |
01131-160412 | TNGN-160412 | 16.5 | 9.525 | 4.76 | 1.2 | 13.097 |
01131-220408 | TNGN-220408 | 22.0 | 12.700 | 4.76 | 0.8 | 18.256 |
01131-220412 | TNGN-220412 | 22.0 | 12.700 | 4.76 | 1.2 | 17.859 |
