ТВЕРДЫЕ СПЛАВЫ: ПЛАСТИНЫ СМЕННЫЕ ДЛЯ ТОКАРНОЙ ОБРАБОТКИ
Для токарных проходных, подрезных, расточных резцов и резцов работающих по копиру

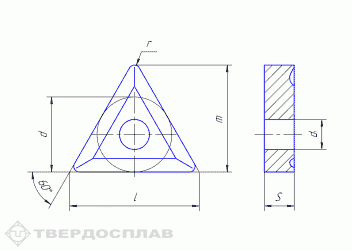

цифровое | буквенно-цифровое | L | d | d1 | s | r | m |
---|---|---|---|---|---|---|---|
01114-160304 | TNUM-160304 | 16.5 | 9.525 | 3.81 | 3.18 | 0.4 | 13.891 |
01114-160308 | TNUM-160308 | 16.5 | 9.525 | 3.81 | 3.18 | 0.8 | 13.494 |
01114-160312 | TNUM-160312 | 16.5 | 9.525 | 3.81 | 3.18 | 1.2 | 13.097 |
01114-160404 | TNUM-160404 | 16.5 | 9.525 | 3.81 | 4.76 | 0.4 | 13.891 |
01114-160408 | TNUM-160408 | 16.5 | 9.525 | 3.81 | 4.76 | 0.8 | 13.494 |
01114-160412 | TNUM-160412 | 16.5 | 9.525 | 3.81 | 4.76 | 1.2 | 13.097 |
01114-220404 | TNUM-220404 | 22.0 | 12.700 | 5.16 | 4.76 | 0.4 | 18.653 |
01114-220408 | TNUM-220408 | 22.0 | 12.700 | 5.16 | 4.76 | 0.8 | 18.256 |
01114-220412 | TNUM-220412 | 22.0 | 12.700 | 5.16 | 4.76 | 1.2 | 17.859 |
01114-220416 | TNUM-220416 | 22.0 | 12.700 | 5.16 | 4.76 | 1.6 | 17.463 |
01114-270612 | TNUM-270612 | 27.5 | 15.875 | 6.35 | 6.35 | 1.2 | 22.622 |
01114-270616 | TNUM-270616 | 27.5 | 15.875 | 6.35 | 6.35 | 1.6 | 22.225 |
01124-160304 | TNMM-160304 | 16.5 | 9.525 | 3.81 | 3.18 | 0.4 | 13.891 |
01124-160308 | TNMM-160308 | 16.5 | 9.525 | 3.81 | 3.18 | 0.8 | 13.494 |
01124-160312 | TNMM-160312 | 16.5 | 9.525 | 3.81 | 3.18 | 1.2 | 13.097 |
01124-160404 | TNMM-160404 | 16.5 | 9.525 | 3.81 | 4.76 | 0.4 | 13.891 |
01124-160408 | TNMM-160408 | 16.5 | 9.525 | 3.81 | 4.76 | 0.8 | 13.494 |
01124-160412 | TNMM-160412 | 16.5 | 9.525 | 3.81 | 4.76 | 1.2 | 13.097 |
01124-220404 | TNMM-220404 | 22.0 | 12.700 | 5.16 | 4.76 | 0.4 | 18.653 |
01124-220408 | TNMM-220408 | 22.0 | 12.700 | 5.16 | 4.76 | 0.8 | 18.256 |
01124-220412 | TNMM-220412 | 22.0 | 12.700 | 5.16 | 4.76 | 1.2 | 17.859 |
01124-220416 | TNMM-220416 | 22.0 | 12.700 | 5.16 | 4.76 | 1.6 | 17.463 |
01124-270612 | TNMM-270612 | 27.5 | 15.875 | 6.35 | 6.35 | 1.2 | 22.622 |
01124-270616 | TNMM-270616 | 27.5 | 15.875 | 6.35 | 6.35 | 1.6 | 22.225 |
