ТВЕРДЫЕ СПЛАВЫ: ПЛАСТИНЫ СМЕННЫЕ ДЛЯ ТОКАРНОЙ ОБРАБОТКИ
Для токарных проходных и расточных резцов

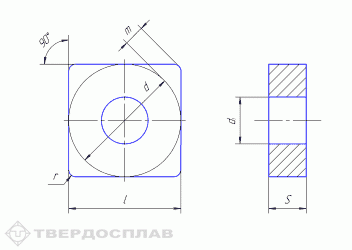

цифровое | буквенно-цифровое | L=d | d1 | s | r | m |
---|---|---|---|---|---|---|
03113-090304 | SNUA-090304 | 9.525 | 3.81 | 3.18 | 0.4 | 1.808 |
03113-090308 | SNUA-090308 | 9.525 | 3.81 | 3.18 | 0.8 | 1.644 |
03113-120404 | SNUA-120404 | 12.700 | 5.16 | 4.76 | 0.4 | 2.465 |
03113-120408 | SNUA-120408 | 12.700 | 5.16 | 4.76 | 0.8 | 2.301 |
03113-120412 | SNUA-120412 | 12.700 | 5.16 | 4.76 | 1.2 | 2.137 |
03113-120416 | SNUA-120416 | 12.700 | 5.16 | 4.76 | 1.6 | 1.973 |
03113-150412 | SNUA-150412 | 15.875 | 6.35 | 4.76 | 1.2 | 2.795 |
03113-150416 | SNUA-150416 | 15.875 | 6.35 | 4.76 | 1.6 | 2.630 |
03113-190612 | SNUA-190612 | 19.050 | 7.93 | 6.35 | 1.2 | 3.452 |
03113-190616 | SNUA-190616 | 19.050 | 7.93 | 6.35 | 1.6 | 3.288 |
03113-190624 | SNUA-190624 | 19.050 | 7.93 | 6.35 | 2.4 | 2.951 |
03113-250716 | SNUA-250716 | 25.400 | 9.12 | 7.94 | 1.6 | 4.598 |
03113-250724 | SNUA-250724 | 25.400 | 9.12 | 7.94 | 2.4 | 4.274 |
03123-090304 | SNMA-090304 | 9.525 | 3.81 | 3.18 | 0.4 | 1.808 |
03123-090308 | SNMA-090308 | 9.525 | 3.81 | 3.18 | 0.8 | 1.644 |
03123-120404 | SNMA-120404 | 12.700 | 5.16 | 4.76 | 0.4 | 2.465 |
03123-120408 | SNMA-120408 | 12.700 | 5.16 | 4.76 | 0.8 | 2.301 |
03123-120412 | SNMA-120412 | 12.700 | 5.16 | 4.76 | 1.2 | 2.137 |
03123-120416 | SNMA-120416 | 12.700 | 5.16 | 4.76 | 1.6 | 1.973 |
03123-150412 | SNMA-150412 | 15.875 | 6.35 | 4.76 | 1.2 | 2.795 |
03123-150416 | SNMA-150416 | 15.875 | 6.35 | 4.76 | 1.6 | 2.630 |
03123-190612 | SNMA-190612 | 19.050 | 7.93 | 6.35 | 1.2 | 3.452 |
03123-190616 | SNMA-190616 | 19.050 | 7.93 | 6.35 | 1.6 | 3.288 |
03123-190624 | SNMA-190624 | 19.050 | 7.93 | 6.35 | 2.4 | 2.951 |
03123-250716 | SNMA-250716 | 25.400 | 9.12 | 7.94 | 1.6 | 4.598 |
03123-250724 | SNMA-250724 | 25.400 | 9.12 | 7.94 | 2.4 | 4.274 |
